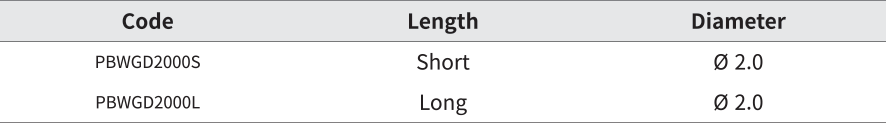

Lance drill

High visibility during surgery with laser markings at 8, 10, 11.5, 13, and 15, measurements correspond to the length of MR implants.

The Lance Drill is for cortical bone only; however, it is possible to drilling up to marker depending upon the surgical situation.

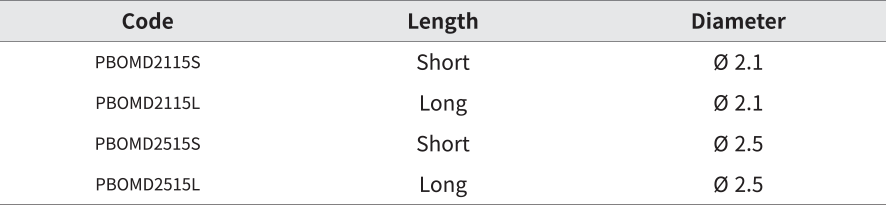

Straight Drill

High visibility during surgery with laser markings at 8, 10, 11.5, 13, and 15, measurements correspond to the length of MR implants.

The Lance Drill is for cortical bone only; however, it is possible to drilling up to marker depending upon the surgical situation.

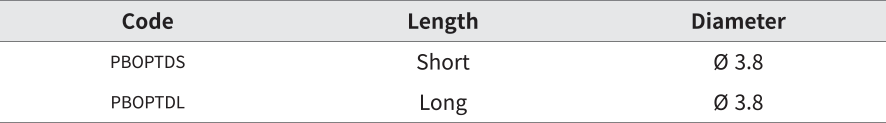

Torque driver

Driver for the MR implant narrow ridge and provisional type

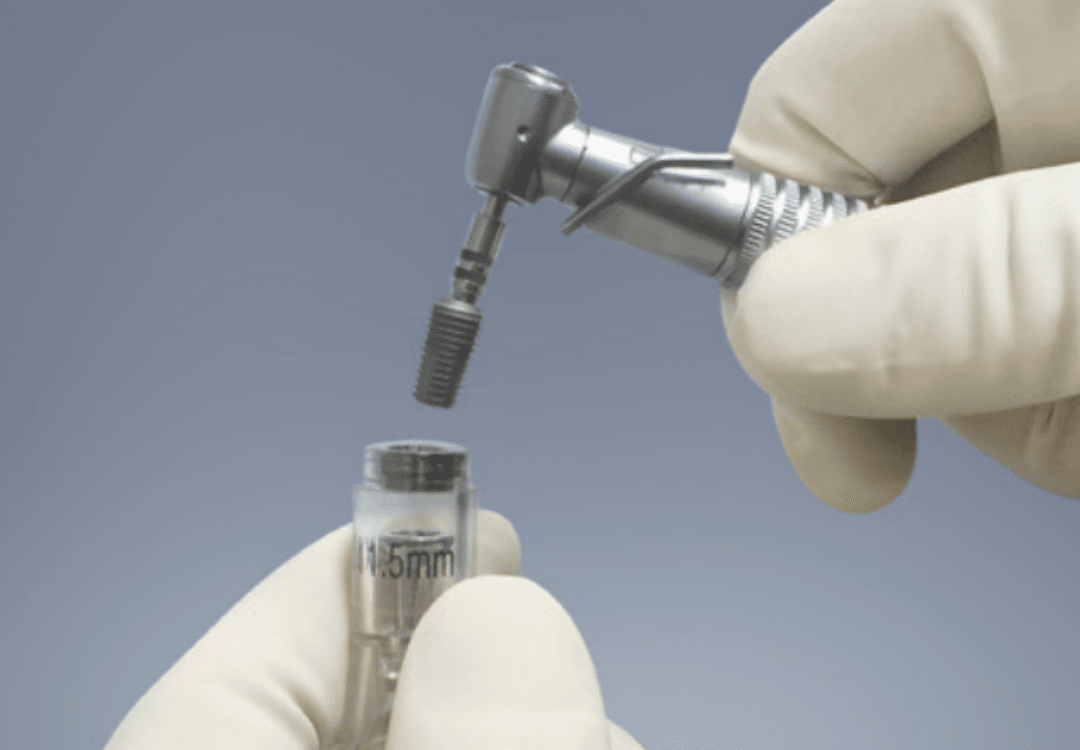

Connect by matching up the triangle marker with the cross section of the implant (as shown)

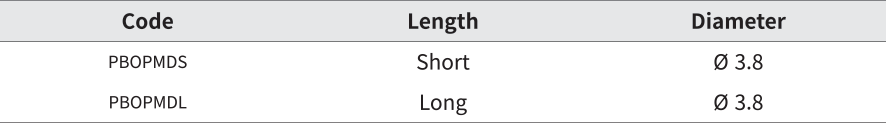

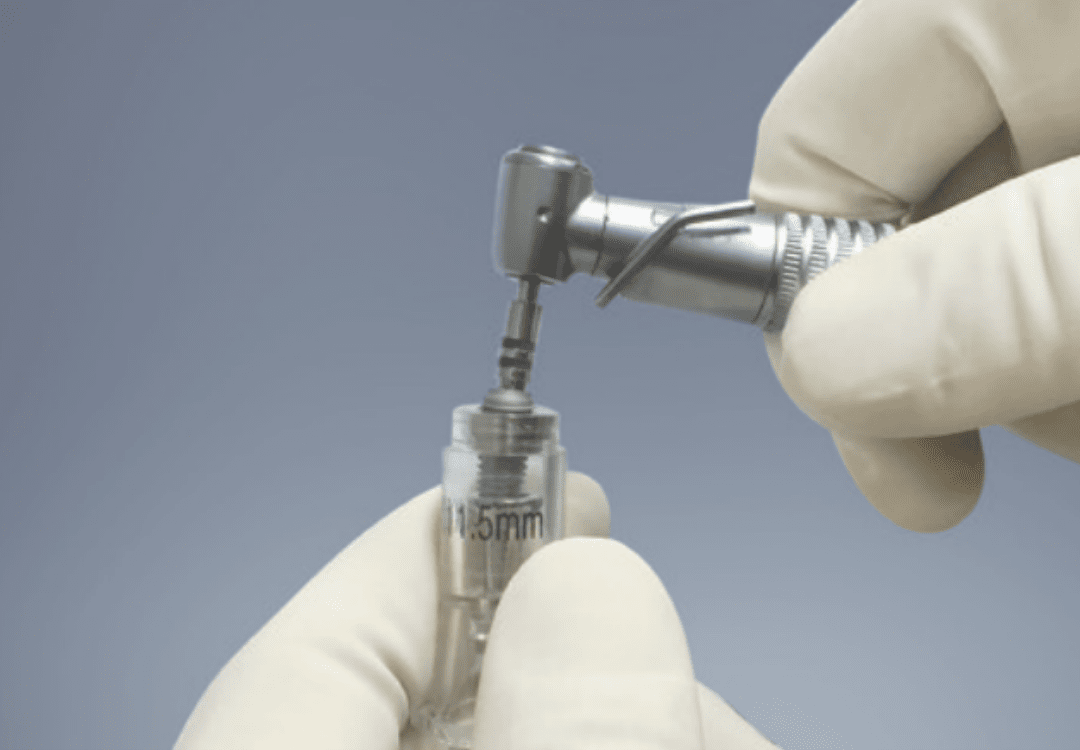

Machine driver

Driver for the MR implant narrow ridge and provisional type

Connect by matching up the triangle marker with the cross section of the implant (as shown)

O-ring Abutment Torque driver

Driver for MR implant denture

Connect by matching up the triangle marker with the cross section of the implant (as shown)

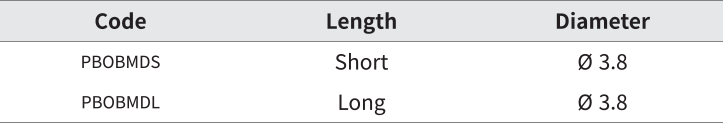

O-ring Abutment Machine driver

Driver for MR implant denture

Connect by matching up the triangle marker with the cross section of the implant (as shown)

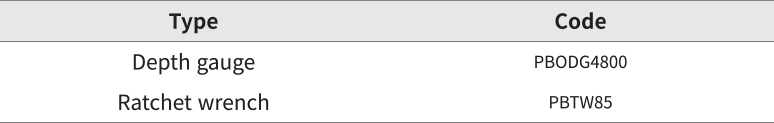

Gauge for MR Implant

Depth gauge : Left side: Measures drilling depth / Right side: Used to modify the MR Implant Provisional neck angle

Never modify the MR narrow ridge neck

Parallel pin is used to check the path after drilling

Driver Separator

Use when the driver is wedged with the implant. Insert the driver separator into the opening on the driver, and lever the driver off the implant.
